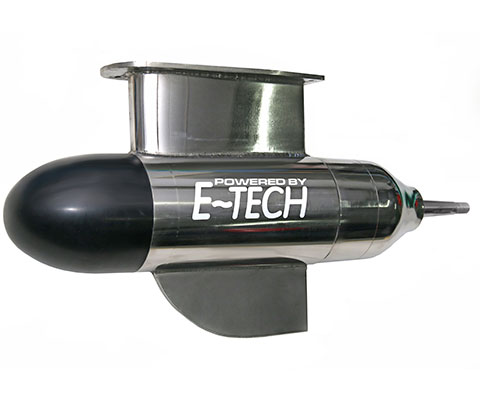

E-TECH HIGH TORQUE PODH
These E-TECH engines are designed for those applications where very high torque is needed.
- Brushless, perm.magnet electric engine (BLDC). The engine works underwater
- The engine is fully maintenance free and has a heavy thrust bearing installed
- A standard shaft f 30mm, 1:10 conic, is fitted, that makes the use of a standard propeller very easy
Motors parameters
| Motor | Voltage | kWatt* | RPM | Controller | Motor |
| 13 POD | 48 | 10,0 | 760 | Air | Water |
| 18 POD | 72 | 15,1 | 1140 | Air | Water |
| 23 POD | 96 | 20,0 | 1520 | Air | Water |
*kWatt measured on the shaft. Representative values only. Values may vary depending on the motor.

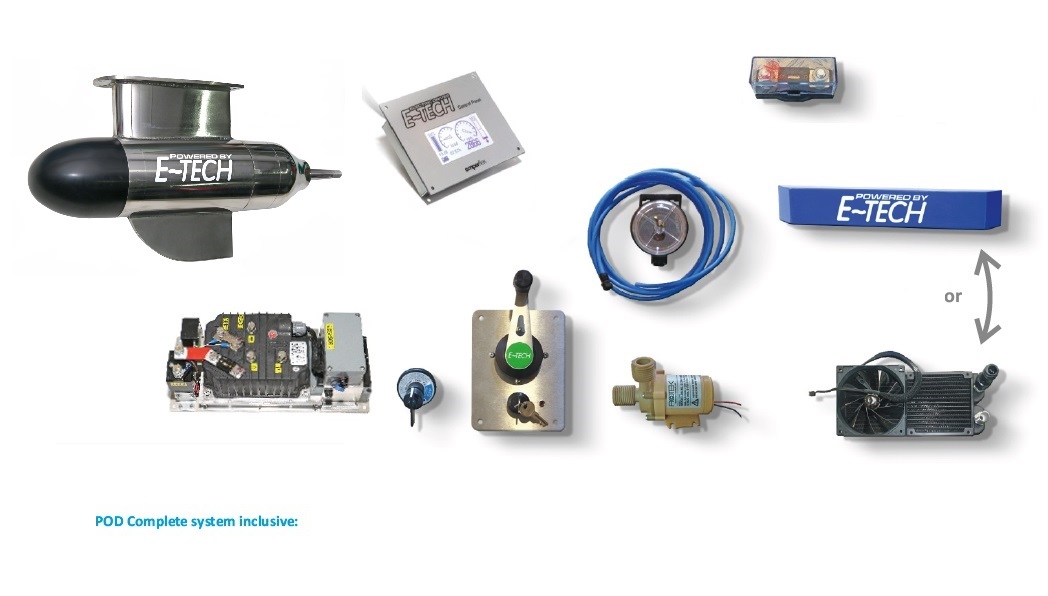

Complete system inclusive:
- Underwater motor
- Appropriate motor controller with water cooling
- Comprehensive display with battery monitor
- Throttle (side or top mounting)
- Ignition with a key
- Data cable from controller to engine (standard 2,5 meter) with non-mistakable plugs
- Data cables between controller and steering position (standard 5 meter) with unmistakable plugs
- An integrated cooling circuit for the controller with Quick-Click connections
- Main switch
- Main fuse
- User manual
Nb. Propeller to be ordered separately
>90% Efficiency
