E-TECH HIGH TORQUE PODH ENGINES

E-TECH HIGH TORQUE PODH

These E-TECH engines are designed for those applications where very high torque is needed.

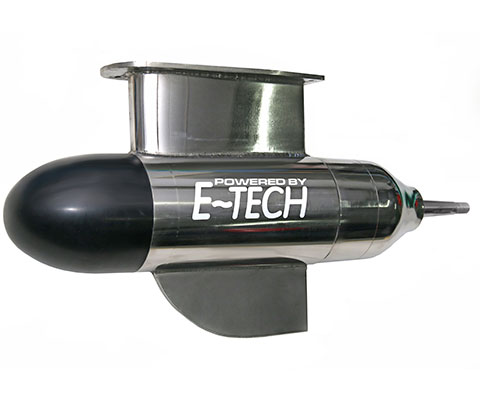

  • Brushless, perm.magnet electric engine (BLDC). The engine works underwater
  • The engine is fully maintenance free and has a heavy thrust bearing installed
  • A standard shaft f 30mm, 1:10 conic, is fitted, that makes the use of a standard propeller very easy

Motors parameters

Motor Voltage kWatt*  RPM Controller Motor
13 POD 48 10,0 760 Air Water
18 POD 72 15,1 1140 Air Water
23 POD 96 20,0 1520 Air Water

*kWatt measured on the shaft. Representative values only. Values may vary depending on the motor.

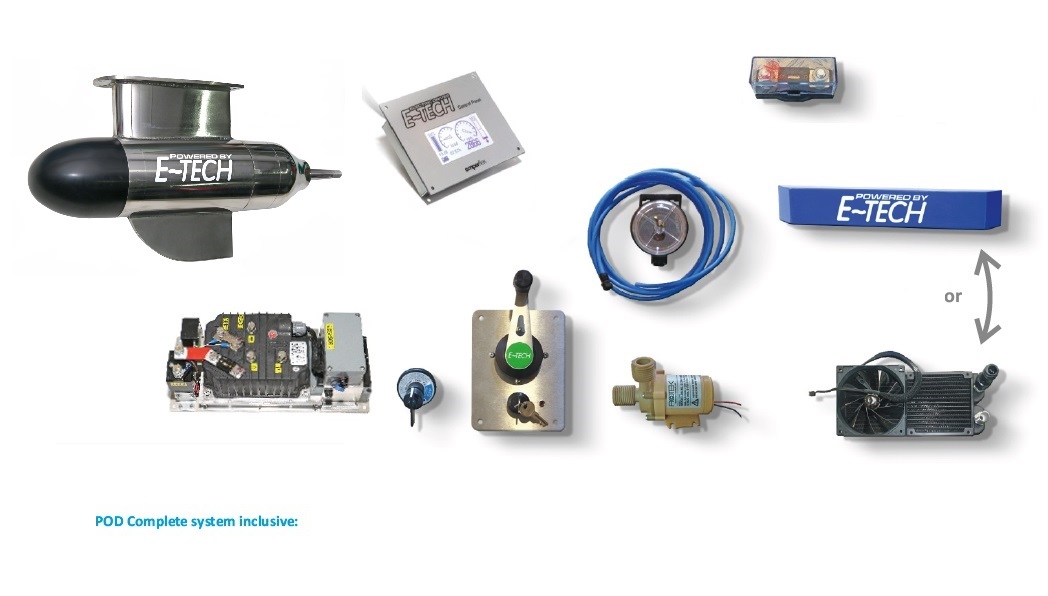

Complete system inclusive:

  • Underwater motor
  • Appropriate motor controller with water cooling
  • Comprehensive display with battery monitor
  • Throttle  (side or top mounting)
  • Ignition with a key
  • Data cable from controller to engine (standard 2,5 meter) with non-mistakable plugs
  • Data cables between controller and steering position (standard 5 meter) with unmistakable plugs
  • An integrated cooling circuit for the controller with Quick-Click connections
  • Main switch
  • Main fuse
  • User manual

Nb. Propeller to be ordered separately

>90% Efficiency
